1001 in Detail
(3) Exteriors – Motor Coach S60118

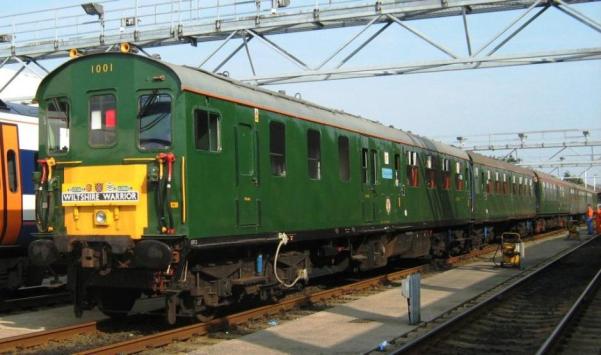

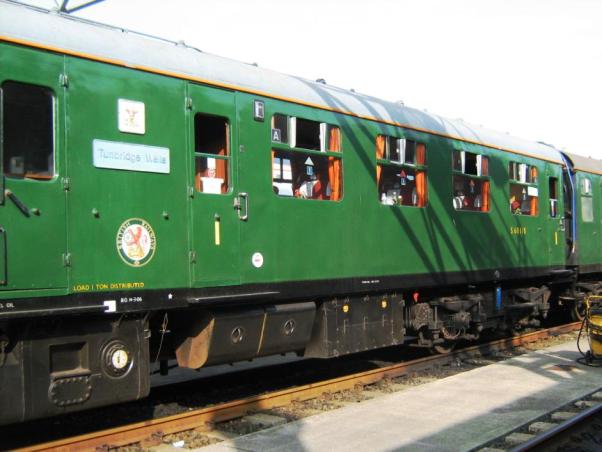

The following photographs are of one side of 6L motor coach
S60118 ‘Tunbridge Wells’ which was originally in unit 1013.

Hastings diesels.jpg

S60118S outer end.jpg

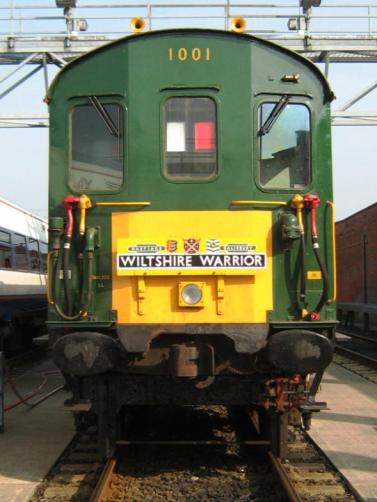

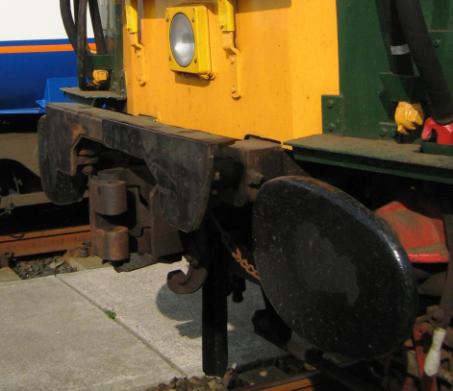

Raised buckeye and retracted buffers. Note
the buckeye is not fitted with a shelf-bracket.

Buffers retracted.jpg

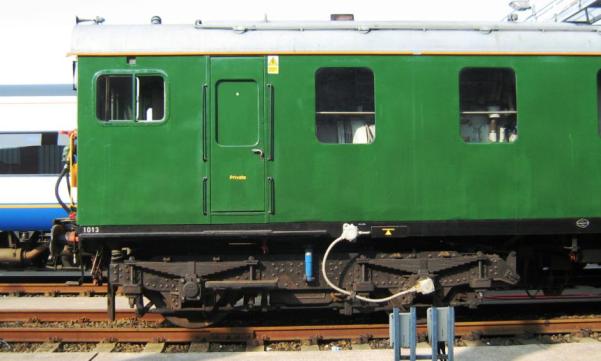

Side 81.jpg

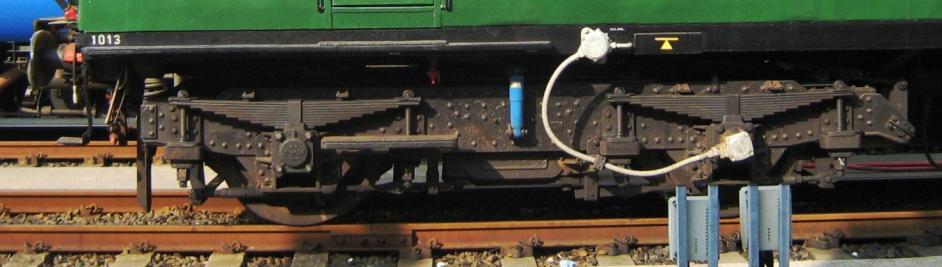

This is the unpowered bogie that supports the weight of the diesel
engine and generator. The speedometer drive is taken from this side.

Non-powered bogie.jpg

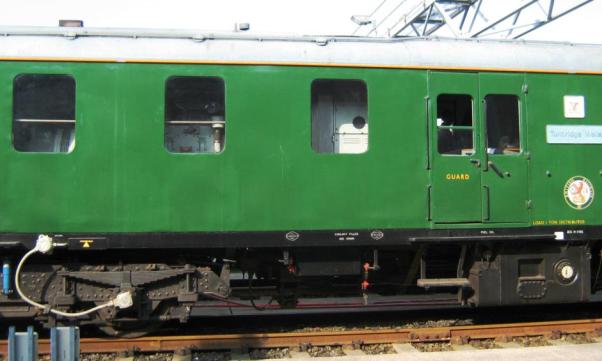

Side 82.jpg

Brake rigging.jpg

Side 83.jpg

Side 83a.jpg

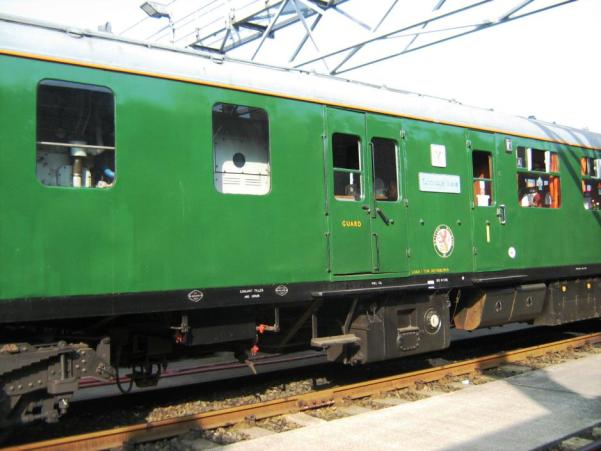

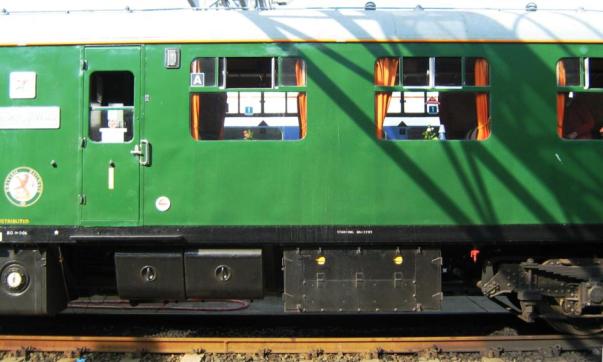

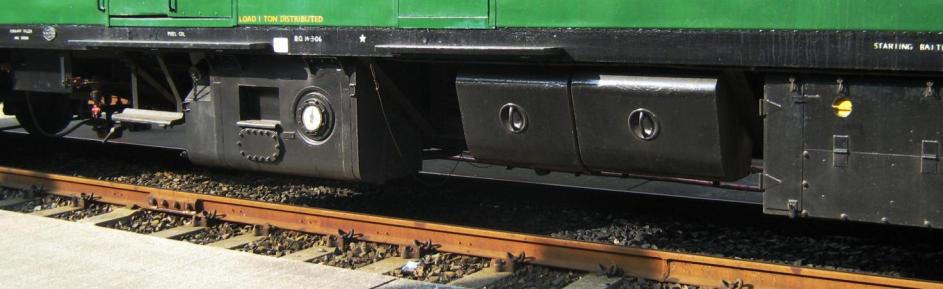

The fuel tank under S10118.

Fuel tank 1.jpg

Side 84.jpg

Side 84a.jpg

Fuel tank 2.jpg

Side 85.jpg

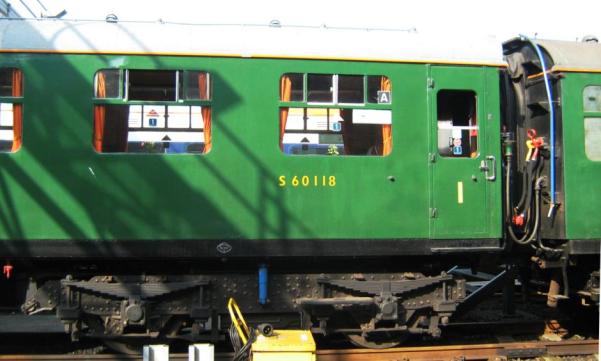

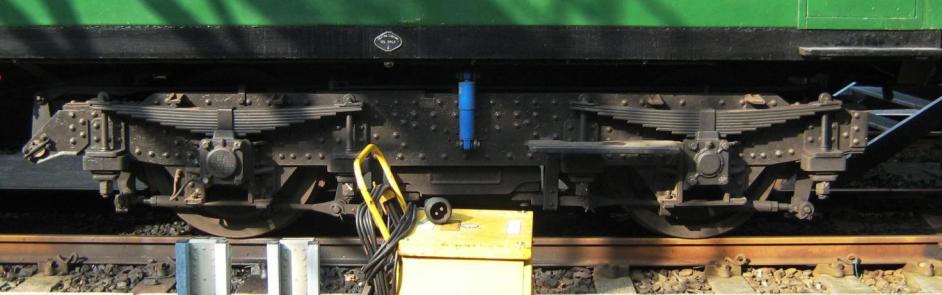

The powered bogie beneath the passenger saloon. The traction motors are
located at this end in order to balance out the weight of the motor coach.

Motor bogie.jpg

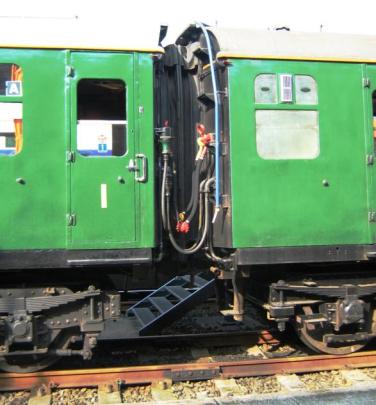

The inner end of S10116 (lhs)

S60118S inner end.jpg
